Static Var Generator
Static Var Generator
RSPQC - SVG
The cabinet capacity can be any combination between 50kVAr〜500kVAr,and the larger capacity cabinet can be customized. -800x800x2200mm (W * D * H)cabinet, the maximum capacity: 500kVAr. -1000x1000x2200mm (W * D * H)cabinet, maximum capacity: 600kVAr. 2. Cabinet protection level: IP30 (IP40 can becustomized). 3. The cabinet contains all the components in the cabinet, such asSVG modules, RS-LCD LCD controllers, circuit breakers, etc., but does not includebranch bus bars, through bus bars, N rows, etc. connected to the external powergrid. 4. External sampling CT is generally provided by the customer on site and canbe ordered separately.

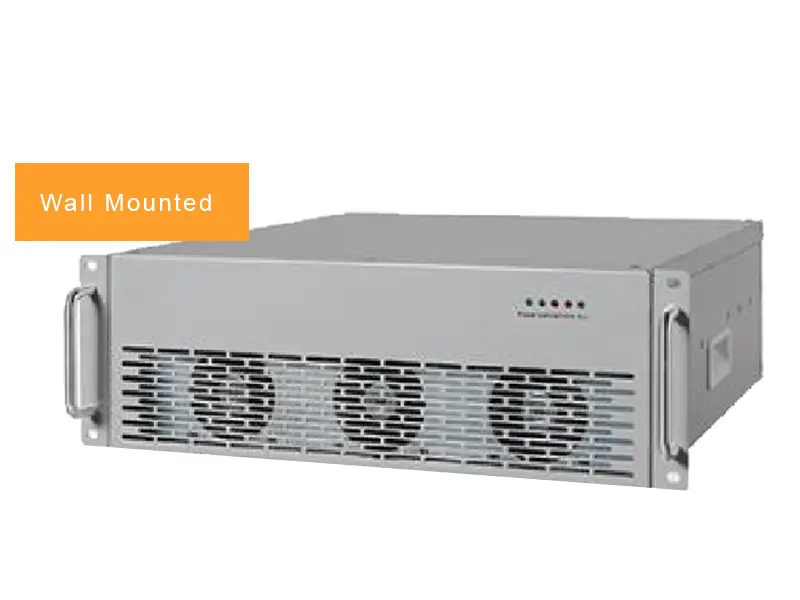

RS-SVG-400V-Module

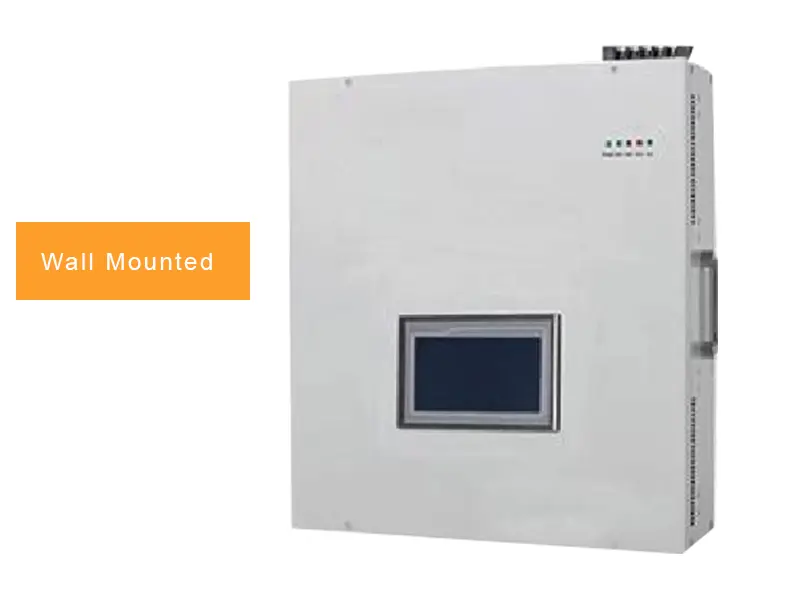

Mounted10/ 15/ 30/ 50/ 75/ 100/ 150 Kvar

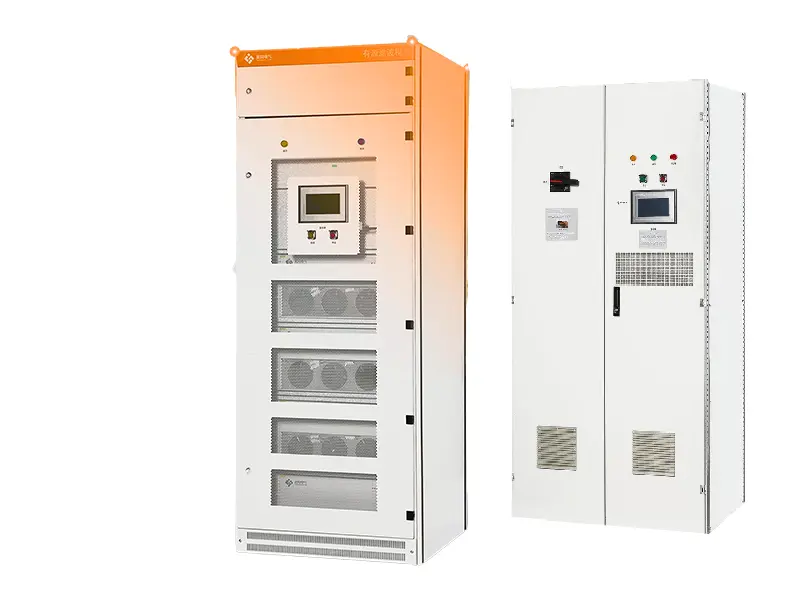

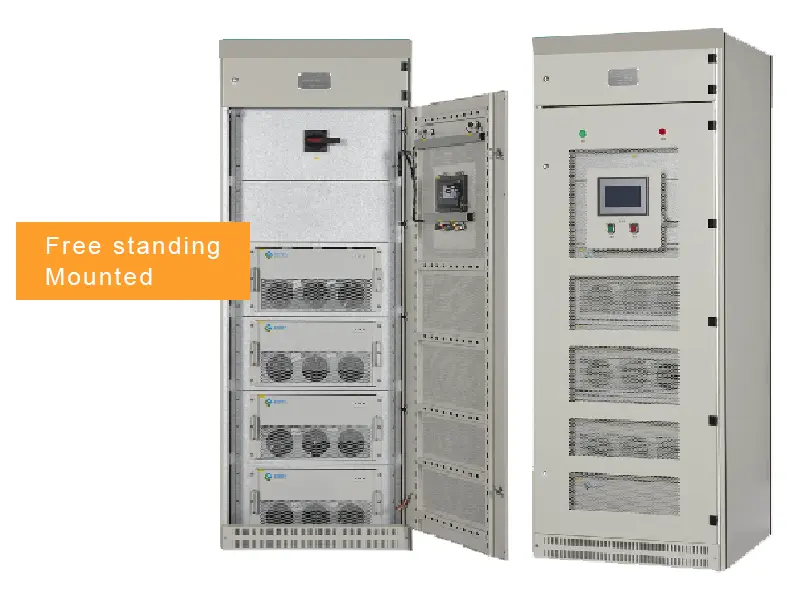

RS-SVG-400V-Free Landing Cabinet
1Dimension: 800x800x2200mm (W*D*H） | Maximum Capacity: 500kVArDimension: 1 000x1000x2000mm (W*D*H） | Maximum Capacity: 600kVArRS
RS-CSVG Hybrid Reactive Power Generator Solution

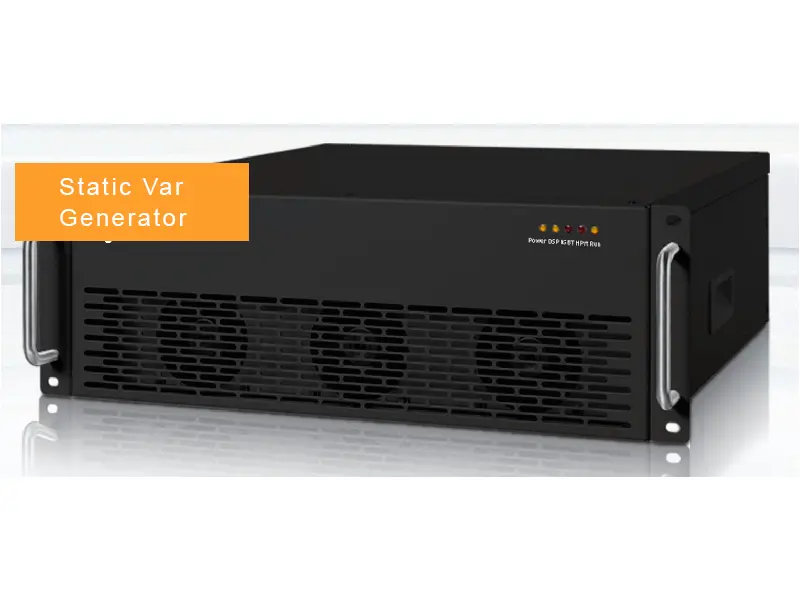

Optimal Power Factor Correction
Advanced Performance
Quality Assurance
